14 3/4”IADC 517 Tri-Cone Bit Tricone Bit Soft Rock Drilling Bits For Water Well Drilling

원래 장소:

중국 허베이

인증:

ISO9001

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

노즐 유형:

결정된

시장:

글로벌

이점:

내구성과 고효율

원뿔 크기:

다양한 사이즈 이용 가능

IADC:

지질학을 기반으로합니다

유형:

TCI 또는 강철 치아

베어링 종류:

저널 베어링

지불 및 배송 조건

가격

협상 가능

포장 세부 사항

고객 요구에 따라

배달 시간

0 일

지불 조건

티/티

공급 능력

50000pcs/월

14 3/4”IADC 517 Tri-Cone Bit Tricone Bit Soft Rock Drilling Bits For Water Well Drilling

가장 좋은 가격 을 구하라

비디오

374mm(14 3/4") TCI Rock Drilling Bit Tricone Hard Rock Drilling Bit For Water Well Drilling

가장 좋은 가격 을 구하라

Small Size Tricone Bit Package

가장 좋은 가격 을 구하라

20인치 TCI 트리콘 비트, IADC535 트리콘 드릴 비트 신규 단조 수처리 회전

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

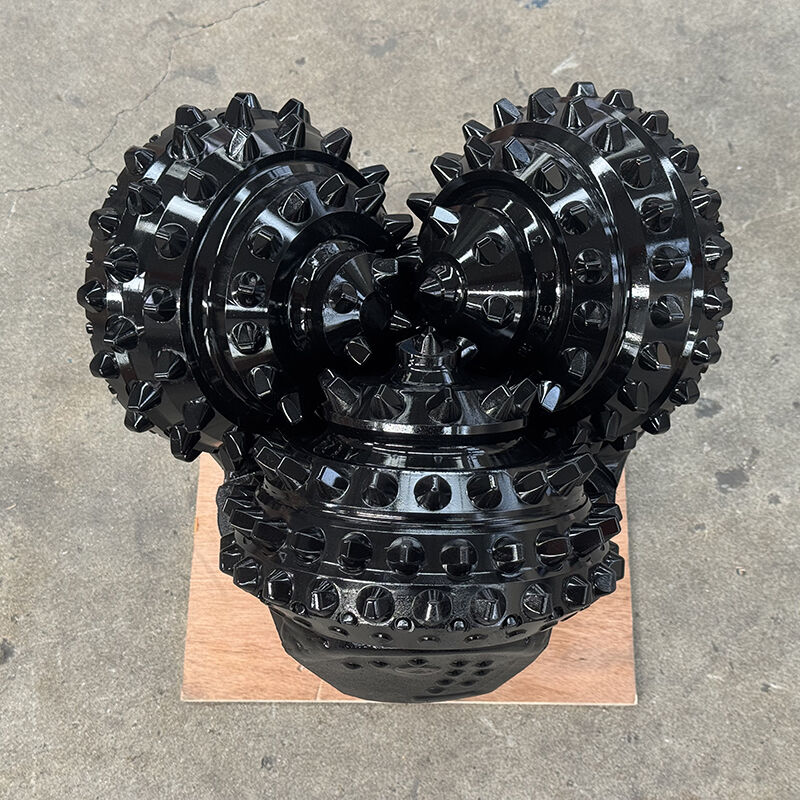

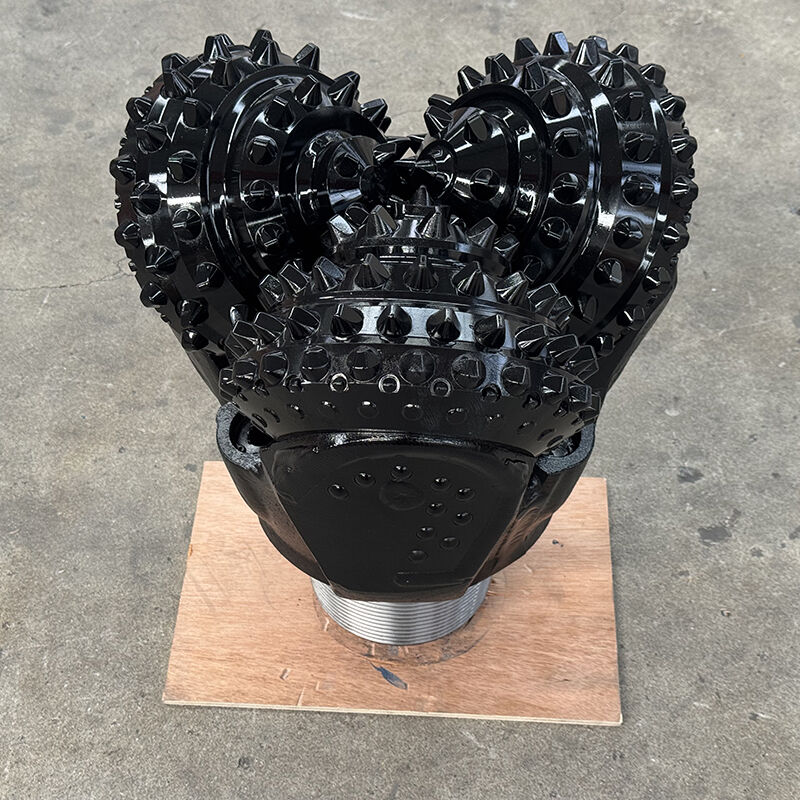

14 3/4”IADC 517 Tri-Cone Bit Tricone Bit Soft Rock Drilling Bits For Water Well Drilling

The three cone drill bit is a widely used core tool in petroleum drilling operations, and its performance directly affects drilling quality, efficiency, and cost. The drill bit structure consists of four main parts: the tooth palm body, the roller body, the bearing system, and the nozzle. According to the type of bearing, it can be divided into two categories: rolling bearings and sliding bearings, and according to the method of tooth fixation, it can be divided into two categories: hobbing and milling. It crushes rocks through the impact crushing effect and sliding shear effect generated by the revolution and rotation of the roller cone, and is suitable for various soft, medium, and hard strata. The International Association of Drilling Contractors (IADC) has developed a three digit coding standard for classification and selection based on tooth type, formation adaptability, and structural characteristics

PRODUCT SPECIFICATIONS
product name	14 3/4”IADC 517 Tri-Cone Bit
model number	CA535
series	CA
tooth type	TCI
connection	6 5/8" Reg PIN
Nozzle	three jet nozzles
application	Mining,water well,oil well,HDD,exploration,etc
weight	78kg
certificate	SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATION
medium soft with low compressive strength and harder abrasive stringers,such as shale,hard gypsolyte,soft limestone,sandstone and dolomite with stringers,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	415	435	445	515,525	535,545	615,625	635,645	735,835
WOB(KN/mm)	0.35~0.90	0.35~0.95	0.35~1.00	0.35~1.05	0.35~1.05	0.35~1.05	0.70~1.20	0.70~1.20
RPM(r/min)	140~70	140~60	140~60	120~50	110~40	80~40	70~40	70~40

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
