The core component of PDC drill bits is the polycrystalline diamond coating, which is manufactured through high-temperature and high-pressure synthesis technology. Polycrystalline diamond is formed by the combination of many small diamond grains under high temperature and pressure. This structure gives PDC drill bits very high hardness and wear resistance, enabling drilling under extreme geological conditions.
The matrix of PDC drill bits is usually made of hard alloy, which has good strength and rigidity. Hard alloy is made by high-temperature sintering of metal carbide particles (such as tungsten carbide) and metal powder (such as cobalt). The function of this matrix is to support the polycrystalline diamond coating and transmit rotational and drilling forces into the rock.
|
PRODUCT SPECIFICATIONS |
|
|
product name |

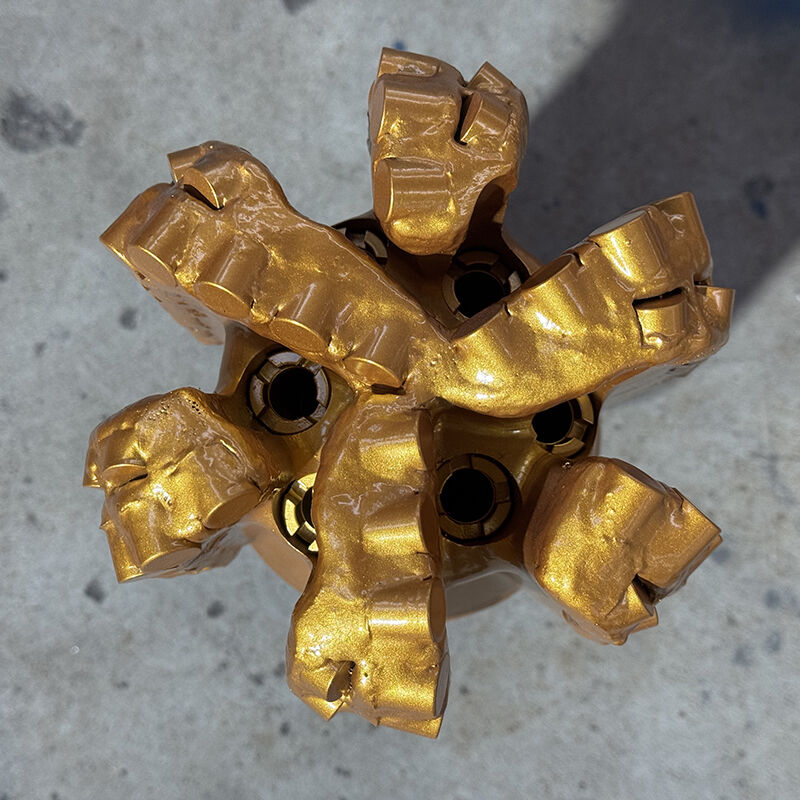

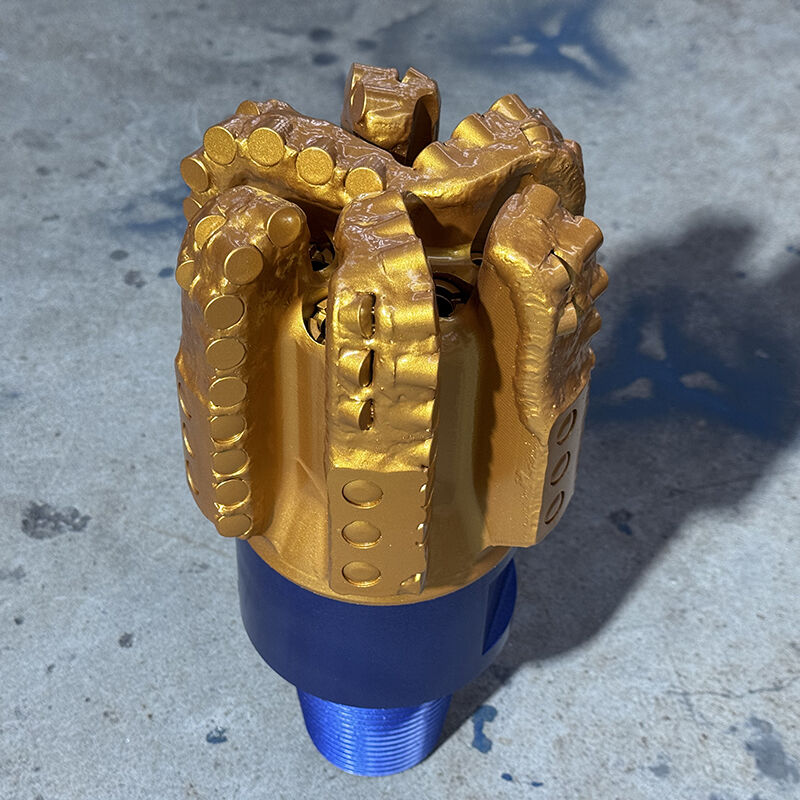

9 1/2 inch CS1605 steel body PDC bit |
|
size |
9 1/2 inch,241.3mm |
|
model number |
CS1605 |
|
series |
CS |
|
body type |
steel body |
|
primary cutter size |
16mm |
|
number of nozzle |
7 |
|
number of blade |
5 |
|
Gauge length |
2.7" |
|
Junk Slot Area(in²) |
25.4 |
|
connection |
6 5/8" API Reg |
|
Make Up Torque(KN.m) |
51.7~56.9 |
|
application |
water well,oil well,HDD,exploration,etc |
|
weight |
98kg |
|
certificate |
API7-1,SY/T5164,ISO9001:2008 |
Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.
Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.
Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.
This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
